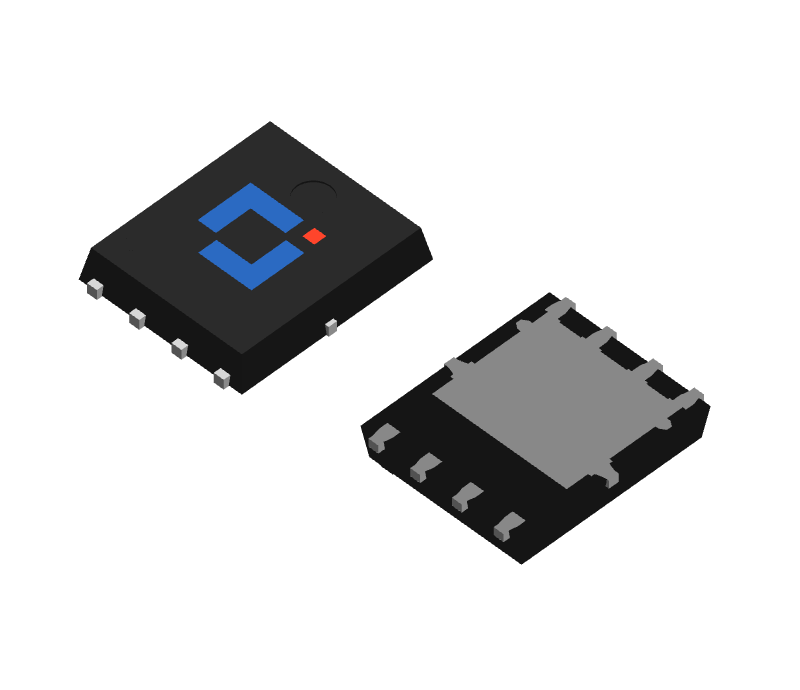

Nch 120V 75A, PDFNWB5x6-8L, SGT MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAC9R5SN12MK | Active | No | 120 | ±20 | 75 | 2.0~4.0 | 7.5 | 9.5 | - | - | PDFNWB5×6-8L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJAC9R5SN12MK | PDFNWB5×6-8L | 9R5SN12MK | 5K/Reel;13 inch | 10K | 50K | MSL1 |
